ESP32-S3-DEVKITC-1 - Project Board

Tecnical Documentation: GitHub

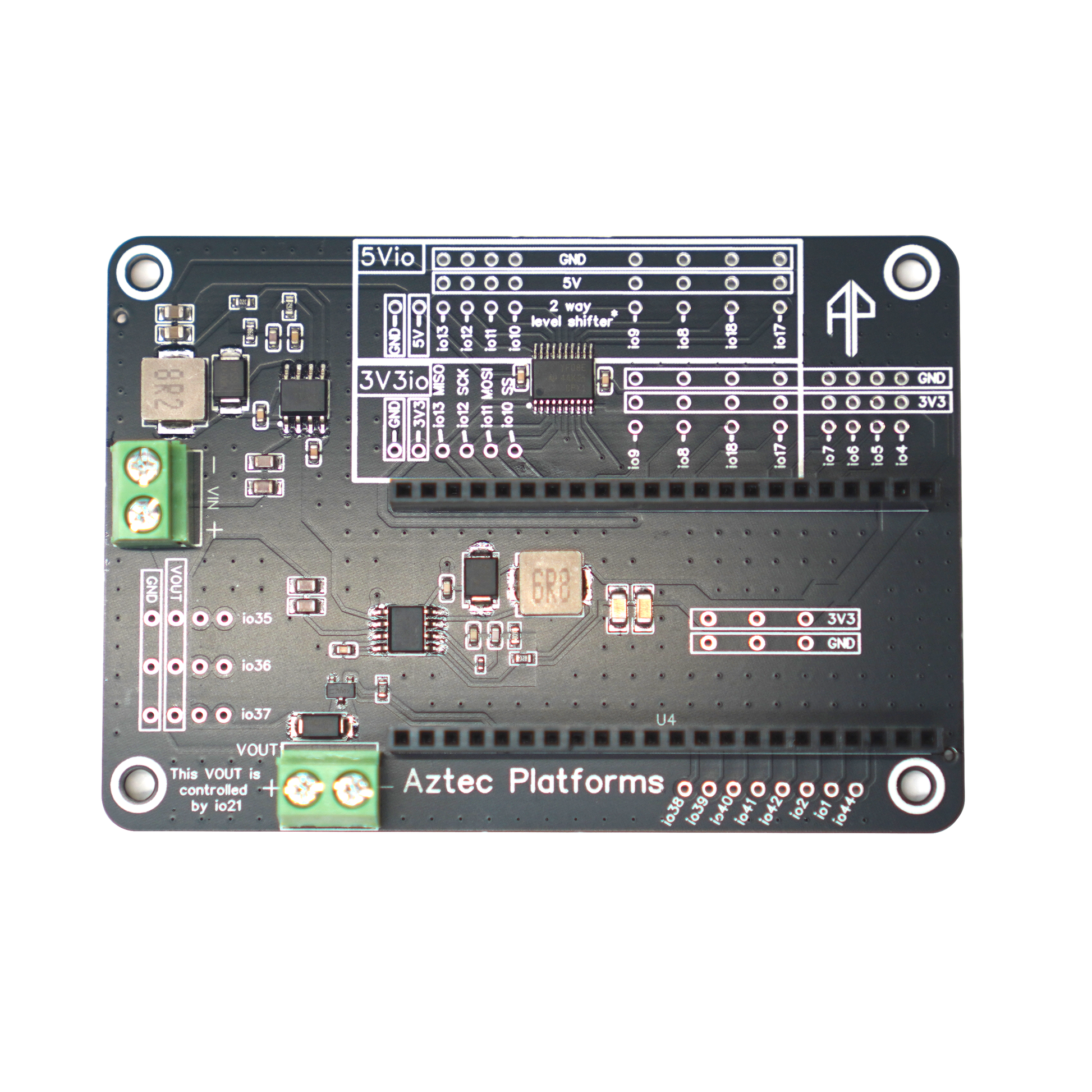

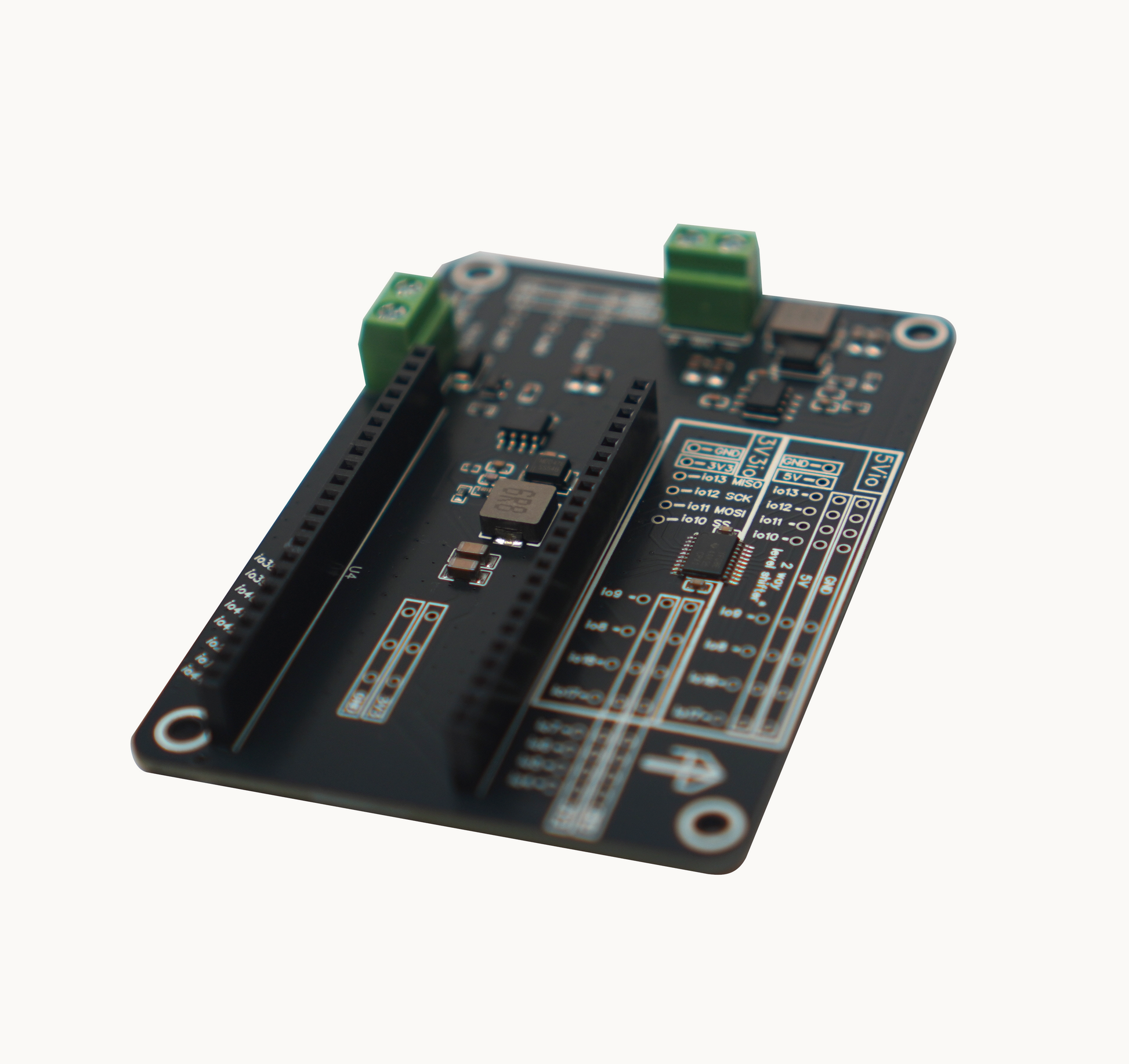

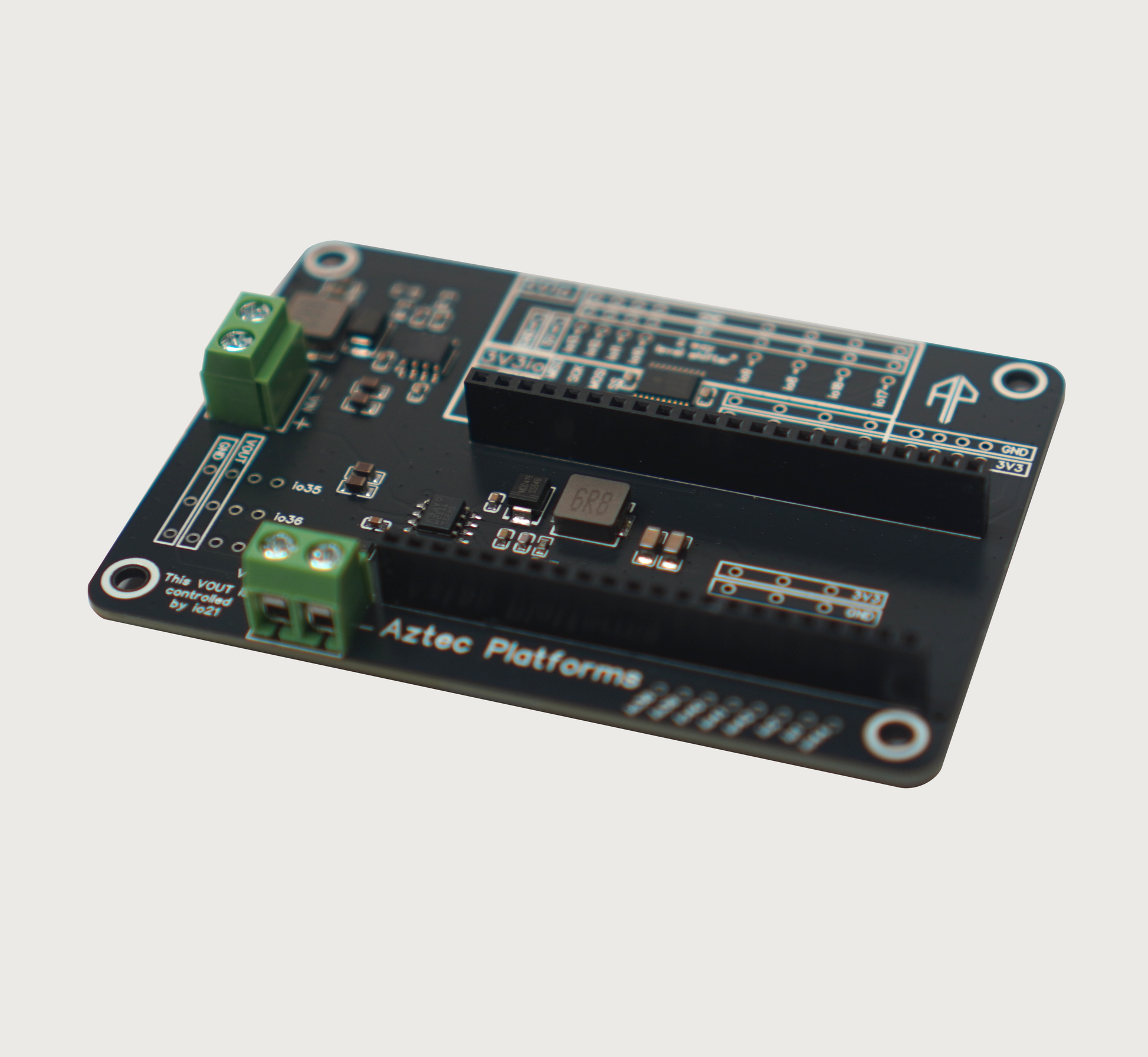

This project board is designed to work with the ESP32-S3-DevKitC-1

The AP-ESP32S3DC1-PB-1V4 cuts down on wiring headaches and power supply hacks, giving you clean voltage rails, level shifting, and flexible outputs right out of the box. Whether you’re prototyping or building a permanent project, this board helps you get from idea to working build faster.

Key Features

• Multiple Voltage Rails: Vin, 5V, and 3.3V available at your fingertips. Power your ESP32-S3, sensors, and modules with ease.
• Integrated Level Shifter: Seamlessly connect 3.3V and 5V devices without worrying about damaging your microcontroller.
• N-Channel MOSFET Control: Use PWM to control two-wire motors, fans, or other devices. Adjust speed and power smoothly without extra hardware.
• Designed for Reusability: Perfect for both quick experiments and long-term installations.

Most DIY projects stall on wiring, power conversion, and pin compatibility. This board handles those pain points so you can focus on building, not troubleshooting.

Aztec Platforms boards are built by DIYers, for DIYers.
