Seeed Studio Xiao - Project Board

Technical Documentation: GitHub
Video Overview: coming soon!

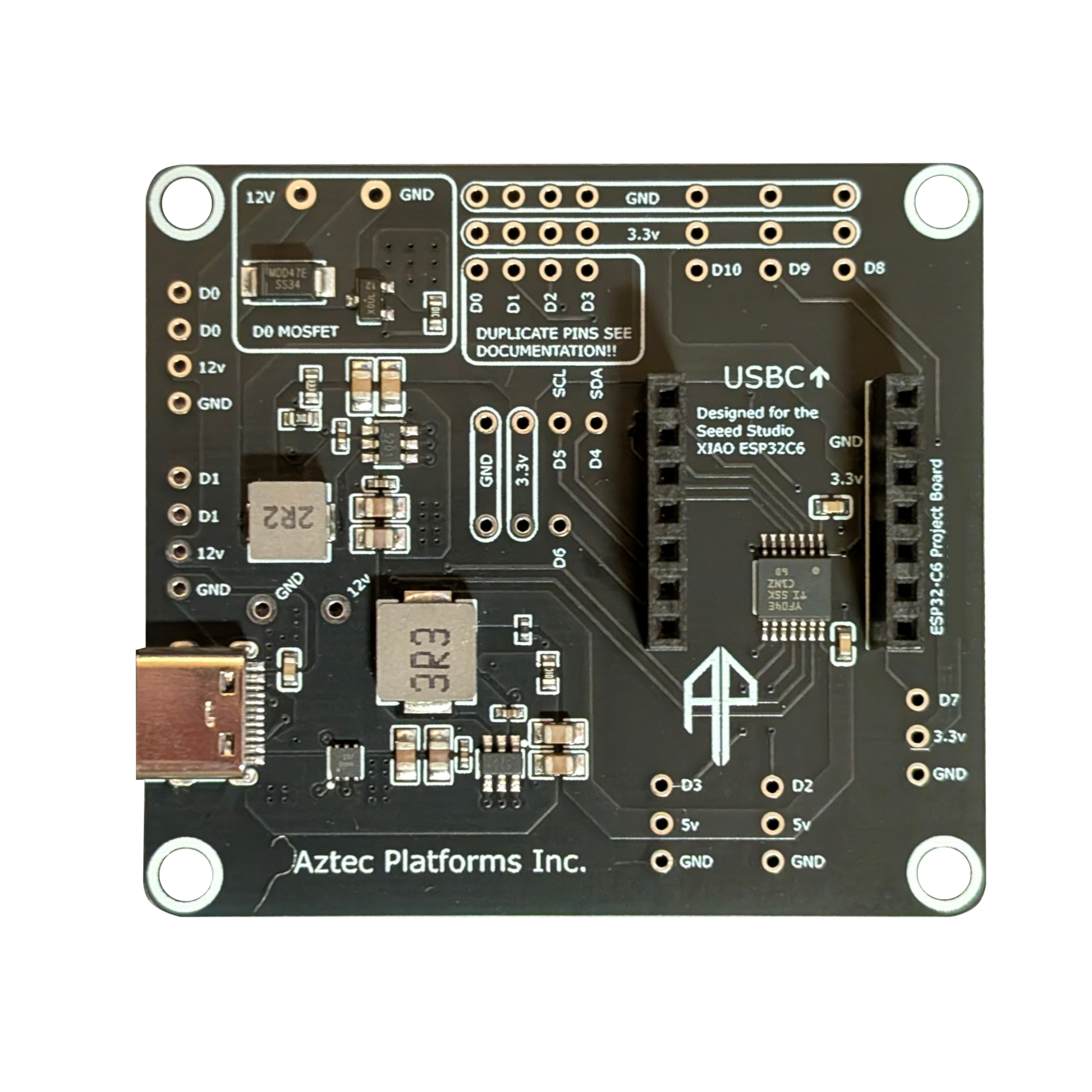

This project board is designed to work with the Seeed Studio Xiao Series Development Boards

The AP-XIAO-PB-3V3-V1 cuts down on wiring headaches and power supply hacks, giving you clean voltage rails, level shifting, and flexible outputs right out of the box. Whether you’re prototyping or building a permanent project, this board helps you get from idea to working build faster.

Key Features

• USB-C Power Delivery: When powered via USB-C, this board will request a 12v PD Profile. If the Charger does not have that power profile, it will drop to an input of 9V. See technical docs for more information.
• Multiple Voltage Rails: Vin, 5V, and 3.3V available at your fingertips. Power your ESP32-S3, sensors, and modules with ease.
• Integrated Level Shifter: Seamlessly connect 3.3V and 5V devices without worrying about damaging your microcontroller.
• N-Channel MOSFET Control: Use PWM to control two-wire motors, fans, or other devices. Adjust speed and power smoothly without extra hardware.
• Designed for Reusability: Perfect for both quick experiments and long-term installations.

Most DIY projects stall on wiring, power conversion, and pin compatibility. This board handles those pain points so you can focus on building, not troubleshooting.

Aztec Platforms boards are built by DIYers, for DIYers.
